STREET ELEVATION
sections

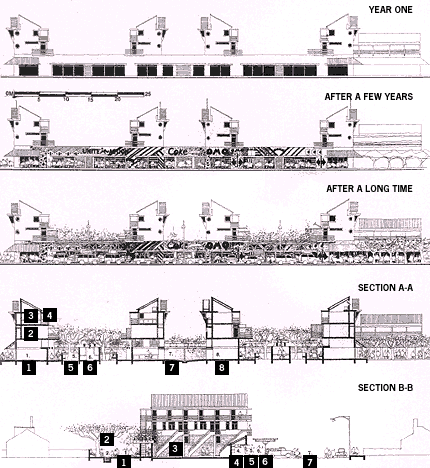

    SECTION A-A
  1. PUBLIC FACILITY
  2. ONE BEDROOM APRTMENT
  3. BED-SITTER
  4. ACCESS WALKWAY
  5. RESIDENTS' COURTYARD
  6. LAUNDRY
  7. INDUSTRIAL COURTYARD
  8. WORKSHOP/GARAGE

    SECTION B-B
  1. PEDESTRIAN SPINE
  2. WATER CHANNEL
  3. COURTYARD
  4. SHOP CUBICLE
  5. PAVEMENT TRADING AREA
  6. TAXI RANK
  7. STREET
